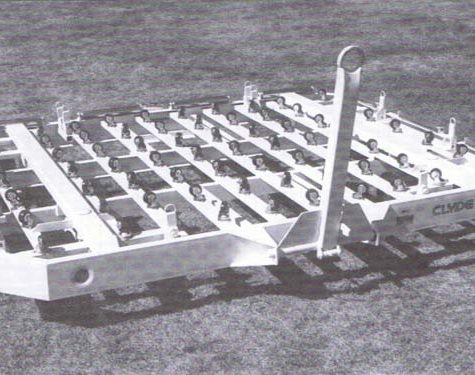

Container Trailer

Product Description

Load Capacity: 3,500 lbs (1,588 kg)

• LD-3 containers
• End guides available to handle LD-2 containers

Conveyor Deck:

• Height: 20.5″ (52.07cm)
• Width: 64″ (162.56cm)
• Length: 64″ (162.56cm)
• Rollers 11 ga x 2.5″ diameter (6.35cm diameter)

Running Gear:

• Double Ackerman steering automotive type tie rod ends
• Rims are two piece demountable
• 500 x 8 solid rubber tires
• Towbar activated parking brakes
• E Type rear hitch with spring loaded pin

Container Stops:

• Spring loaded vertical restraints are manually operated from either end of the cart

Height: 24″ (60.96cm)
Width: 64″ (162.56cm)
Length with towbar down: 162″ (411.48cm)
Wheel base: 82.5″ (209.55cm)
Wheel track: 52″ (132.08cm)
Weight (empty): 1,400 lbs. (635.03kg)
