Product Description

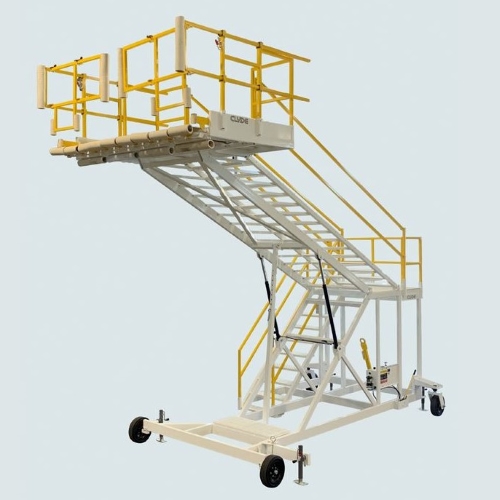

Our over wing maintenance stand is strong, durable and well designed making it ideal for the rigours of day to day life on the ramp.
- 750 lb / 340 kg platform capacity
- Adjustable to any height within its 10’ to 19’ (3.05 to 5.80m) platform floor range
- Double acting hydraulic hand pump with two 2” diameter x 35” stroke lift cylinders and an air over hydraulic system
- Hydraulic restrictors (pressure failure)
- Safety strut with pin
- Self-cleaning non-slip steps with non-slip steel tread grip platform floor
- 72” x 106” (183 x 269cm) main platform with sliding foldable handrails
- 9-3/4″ hex driven acme thread extendable planks with 20” of travel and swivel 4″ outer diameter non-marring bumpers
- Two safety lanyard D-rings move forward and aft with toe plates
- Fixed front and swivel rear casters with 16″ diameter solid tires
- Hand adjustable screw jacks on each corner for stability
- Base, stairs, and platform stay parallel at any height position
- Durable powder coat finish
Weight: 5,200lb / 2,359kg
Frame only Length: 252″ (640cm)
With basket: 319″ (810cm)
Width: 101.5″ (258cm)
Height: 112″ (284cm)
P/N: 3357
Please contact Aviation Spares & Repairs Limited for more information on the windshield maintenance stand. We are here to help with all your GSE requirements.
