Product Description

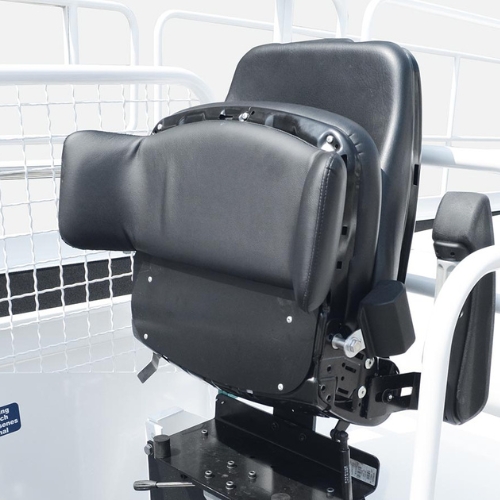

The PULLEY75Sd is a diesel-powered self-propelled universal conveyor belt loader for loading and unloading of air freight, bulk cargo and luggage. Operator’s post with a foldable seat for seated or standing operation in the front left offers good overview during driving and docking operations. The 850 mm wide fixed boom has a 600 mm wide transport belt with a maximum single load of 450 kg or a 135 kg/m maximum continuous load and adjustable belt speed. The aluminium railings are manually adjustable on the front of the boom and for accommodation of larger loads the right-side railing is foldable.

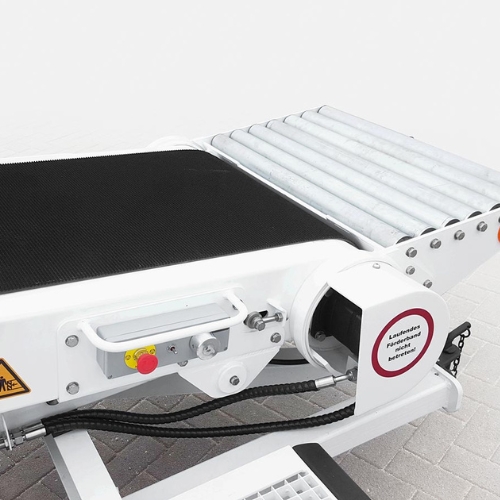

Modular concept of the vehicle with a wide variety of options enables the product to be configured according to the customer’s requirements. The list of options to choose from includes a roll table on the rear of the boom, sensors for retracted railings, Power Stow rollertrack conveyor and safe docking system. The customer can configure the machine down to the colour according to the RAL chart and decide on its logos size and position.
The belt loader is a high-quality product by design as well as manufacturing, has the CE mark and complies to all the relevant EN standards and optionally IATA recommendations.
Specifications:
| Min length [m] | 7,60 |
|---|---|
| Max width [m] | 2,15 |
| Min headroom with roof [m] | 1,90 |
| Service range [m] | 1,07 – 4,50 |
| Drive speed [km/h] | 25 |
| Boom type | Fixed length |
