Product Description

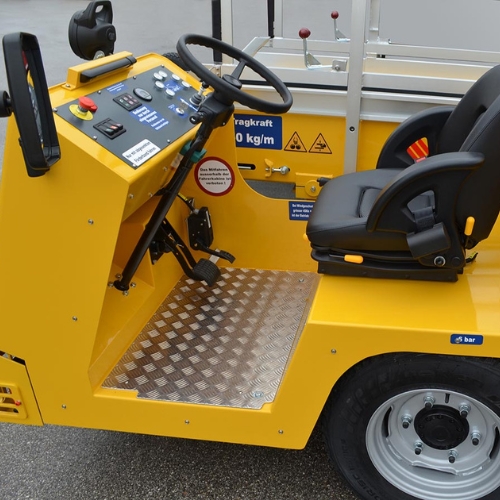

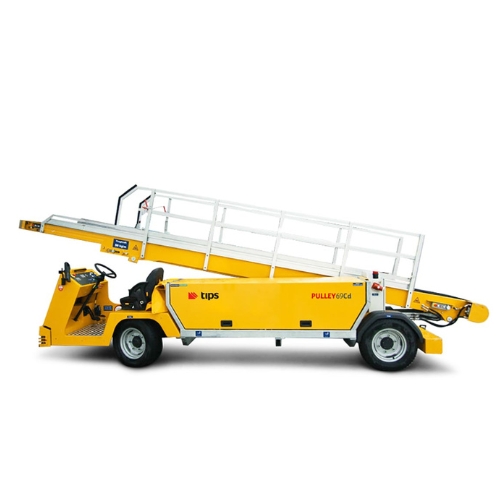

The PULLEY69Cd is a diesel-powered self-propelled universal conveyor belt loader for loading and unloading of air freight, bulk cargo and luggage. Operator’s post in the front left offers good overview during driving and docking operations. The hydraulically extendable telescopic boom combines excellent manoeuvrability and a small turning circle of the vehicle with the high reach of the boom. The 850 mm wide boom has a 600 mm wide transport belt with a maximum single load of 450 kg or a 135 kg/m maximum continuous load and adjustable belt speed. The aluminium railings are manually adjustable on the front of the boom and for accommodation of larger loads the right-side railing is foldable.

Modular concept of the vehicle with a wide variety of options enables the product to be configured according to the customer’s requirements. The list of options to choose from includes a roll table on the rear of the boom, sensors for retracted railings and safe docking system. The customer can configure the machine down to the colour according to the RAL chart and decide on its logos size and position.

The belt loader is a high-quality product by design as well as manufacturing, has the CE mark and complies to all the relevant EN standards and optionally IATA recommendations.

What type of aircraft operations is the PULLEY69Cd belt loader suitable for?

The PULLEY69Cd is designed for loading and unloading air freight, bulk cargo, and luggage across a wide range of aircraft. Its telescopic boom and service range of 1.05m to 5.20m make it suitable for servicing both smaller regional aircraft and larger commercial planes efficiently.

Can the PULLEY69Cd be customised to specific operational requirements?

Yes, the PULLEY69Cd features a modular design that allows for extensive customisation. Options include additional safety systems, rear boom roll tables, railing sensors, and bespoke branding such as colour selection (RAL chart) and logo placement, enabling the machine to be tailored to specific operational and branding needs.

What is the maximum load capacity of the conveyor belt?

The conveyor system supports a maximum single load of 450kg (992lb) and a continuous load capacity of 135kg/m (91lb/ft), making it suitable for demanding airport handling operations.

Are the safety railings adjustable?

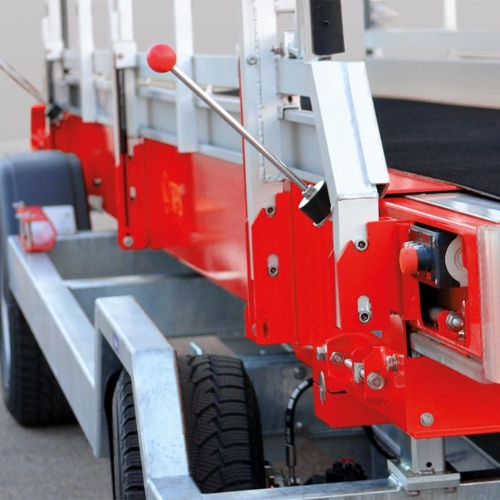

Yes. The aluminium railings are manually adjustable, and the right-side railing can be folded to accommodate larger cargo items during loading operations.

What optional safety systems are available?

Optional features include safe docking systems and sensors for retracted railings to help improve operational safety and reduce ramp damage risks.
