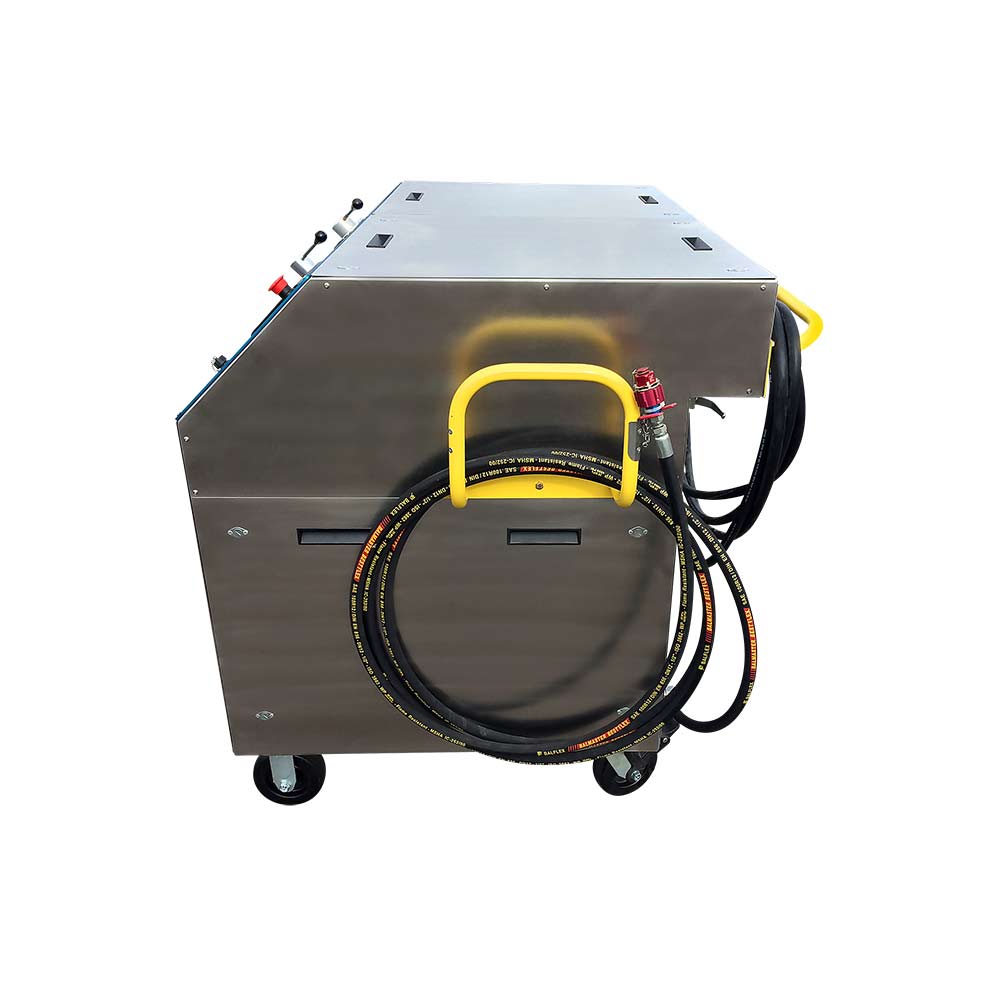

Hydraulic Power Units Size 2 with 20-gallon fluid reservoir

Product Description

These units utilise state-of-the-art technology to offer more flow, more power, and less noise all at a competitive price.

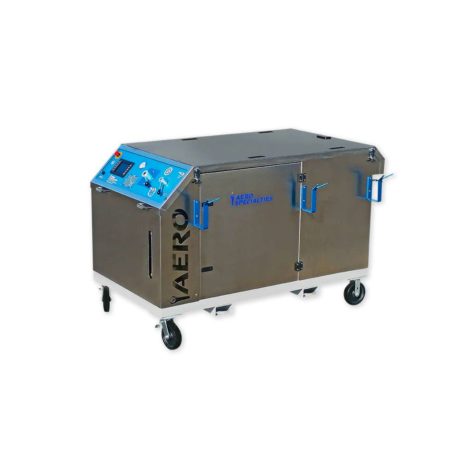

This HPU features an easily drainable 20-gallon (75 liters) fluid reservoir (versus the larger 60-gallon [227 liters] reservoir of the size 3).

These HPUs are fitted with a modern digital display accompanied by an easy-to-use, software-driven operator interface. The included software allows for quick and easy access to settings, aircraft presets, calibration schedules, and more.

Please contact Aviation Spares & Repairs Limited for more information on this Hydraulic Power Unit. We are here to help with all your GSE requirements.

Digital Color Screen

• Main dashboard displays live flow rate, pressure, fluid temperature, proper fluid level and the condition of both filters with an intuitive layout
• Three programmable setpoints for flow and pressure
• Available in French, German, English or Spanish in either metric or imperial units
• Maintenance dashboard allows quick input of the date/time, operator and aircraft tail numbers and tracks filter replacement and gauge calibration
• Easily navigated using backlit pushbuttons and rocker button
• Data logging generates useful reports for each individual test performed with a time-stamped data file of all pressure, flow and temperatures
• Each file can be saved to a thumb drive and identified by the aircraft tail number

Standard Features

• 3-micron synthetic pressure filter
• 5-micron, high dirt holding capacity return filter
• Visual and electronic filter clogging indicators
• Automatic high fluid temperature shutoff
• Visual reservoir sight glass
• Automatic high/low-level reservoir monitoring with automatic shutoff
• 50 ft. (15.2 m) power cord
• 25 ft. (7.6 m) supply and return hoses
• 5,000psi (345 bar) dual scale analogue gauge
• Low noise (<70dBa Quieter than a regular vacuum cleaner)
• Easy to access fluid sample port
• Fluid sampling valve meets ANSI T2.24.1-1991
• Easily drainable 20-gal (75 l) reservoir
• Ergonomically designed for easy manoeuvrability and low clearance in tight hangers
• Durable stainless-steel skins
• Locking hinged access doors and a fully removable top for maintenance access
• Full true drip pan with a drain plug
• Leak preventing hose hangers
• Electric soft start
• Super bright green running light
• Super bright red warning/error light

Width: 43 in. (109 cm)
Height: 49 in. (124 cm)
Depth: 49 in. (124 cm)

• Crossover check
• Dual delivery 25′ (7.6m) hoses
• 50′ (15.2m) delivery hoses
• Dual delivery 50′ (v) hoses
• Towing option
• 100′ (30.5m) power cord
• Hand pump
• Alarm
