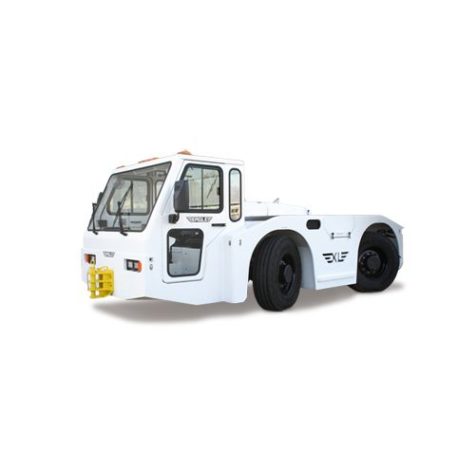

Eagle XL-40 Aircraft Pushback Tractor

Product Description

The Eagle XL-40 aircraft pushback tractor is capable of towing all narrow-body aircraft up to 163,293 kg (360,000 lbs), such as the Boeing 737, the Bombardier CRJ700 series and the Embraer ERJ family, in all weather conditions. Using a Tier 4i final diesel engine, this front-operator tow tractor is compliant with the latest emission standards.

The operator has the option to switch from four-wheel steering or crab steering. The last steering system allows the operator to turn the wheels in the same direction, allowing the aircraft pushback tractor to move sideways, providing further flexibility in tight corners or limited spaces.

The three-person seating operator compartment was designed for efficiency and comfort, equipped with the required safety features, such as a low oil and high temperature shutdown system, low coolant shutdown system, hot-shift transmission protection, emergency stop, built-in marker and strobe lights and a 12-voltage accessory outlet.

For extra safety, this Eagle tow tractor is equipped with front and rear wet-disc brakes, which last longer, require less adjustment and maintenance over time than dry disc brakes. The wet-disc brakes also provide more stopping power and will keep cool during heavy-braking applications.

The Deutz TCD Interim diesel engine featured a fuel capacity of 114 litres (30 gallons) and has a rated output power of 89 kW (120 HP) at 2800 rpm. It comes complete with a heavy-duty air cleaner, suitable for severe environments, and a dry replacement element.

The Eagle XL series come standard with the following features:

• “Hot shift” transmission protection
• Four-wheel steering or crab steering
• Four-wheel drive
• Three-person seating
• Low coolant shutdown system
• High temperature and low oil shutdown system
• Front and rear wet-disc brakes
• Built-in marker and strobe lights
• 12V accessory outlet
• Emergency stop

Optionally, this tow tractor could also include a front and rear multi-level hitch and have a custom paint scheme.

The Eagle XL-40 has the industry’s longest and strongest warranty, three years or 3,000 hours, with parts and technical support available globally.

For more information on the Eagle XL-40 aircraft pushback tractor and other tow tractors, please contact Aviation Spares & Repairs Limited.

We are here to help with all your GSE requirements.

Performance

• Two front and two rear drive wheels
• Drawbar pull of 116 kN (26,000 lbf)
• Towing capacity of 163,292 kg (360,000 lbs)
• Service weight – 18,144 kg (40,000 lbs)
• Optional cab weight – 454 kg (1,000 lbs)

Dimensions

• Length – 5,105 mm (201 inches)
• Width – 2,515 mm (99 inches)
• Deck height – 1,321 mm (52 inches)
• Height with optional cab – 2,134 mm (84 inches)
• Wheelbase – 2,311 mm (91 inches)
• Track – 2,108 mm (83 inches)
• Front and rear tyres – 315/80R22.5
• Height of step – 533 mm (21 inches)
• Ground clearance of 228 mm (9 inches)

Chassis

• Frame and body made with 51 mm (2 inches) thick A36 steel
• Front bumper made with 38 mm (1.5 inches) thick A36 steel
• Rear bumper made with 101.6 mm (4 inches) thick A36 steel

Travel

• Rigid front suspension and Trunnion rear suspension
• Three speeds forward and three speeds reverse
• Maximum speed of 30 kph (19 mph)
• Hydraulic four-wheel coordinated steering
• Front and rear wet disc brakes for capable stopping power
• Rear axle mechanical dry disc parking brakes

Engine

• Deutz TCD 3.6 litres Tier 4i diesel engine
• Rated output of 89 kW (120 HP) at 2800 rpm
• Torque of 480 Nm (354 ft lbs) at 2800 rpm
• Four-cylinder engine (3.6 litres)
• Fuel tank capability of 114 litres (30 gallons)
• Heavy-duty air cleaner capable of handling severe environments and a dry replacement element

Electrical

• 12V electrical system
• 95 amps alternator
• Cold crank battery at dual 650 amps
• Ignition keyed with anti-restart switch
• 12 volts LED long life lights
• Dual-unit digital back-lit display, supplying the operator with engine diagnostics and full instrumentation

Eagle XL Series Spec Sheet

The Eagle Tugs (Eagle) 3-Year Warranty covers all TT-series, eTT-series, XL-series, eXL-series and USATS tow tractors, used in aviation applications. Eagle Tugs warrants that these tractors will be free from defects in material and workmanship for a period of 3 years or 3,000 operating hours, with the exception of the electrical system (see electrical component warranty below), from date of delivery to the first customer (or first use), whichever comes first. Written notice of any claimed defect must be given to Eagle within the warranty period and within thirty (30) days after such defect is discovered. Liability under this warranty is limited to either replacing or repairing, at Eagle’s election, any part or parts deemed defective after examination by Eagle or an Authorized Service Representative. Any Eagle tractor or any of its parts returned by the customer to Eagle or an Authorized Service Representative via prepaid transportation, and which is found to be defective, will be repaired or replaced and returned to the customer prepaid. On the other hand, should a part be found not defective, inspection and handling charges may be charged to the customer or Authorized Service Representative by Eagle.

• Electrical Component Warranty: Electrical components including but not limited to display, starters, alternators and electric fans shall be covered under the respective original manufacturer’s warranty for each individual component. Copies of the respective warranties are available upon request.
• This warranty does not extend to the tires, batteries, and battery chargers as these are warranted directly to the user by their respective manufacturer and not by Eagle or an Authorized Service Representative.
• This warranty does not apply to any Eagle tow tractor, or component part(s) that have been subjected to misuse, accident, vandalism, environmental conditions, improper handling or application, maintenance neglect, including lack of lubricants or fluids; nor does it extend to the Eagle tow tractor and/or parts which have been repaired or altered outside of Eagle’s plant or the facility of an Authorized Service Representative without the permission of Eagle.
• This warranty does not apply to routine maintenance or wearable parts of the Eagle tow tractor such as filters, seals, plugs, hoses, belts, brake pads or shoes, light bulbs, fuses or similar items. Moreover, this warranty does not extend beyond its original term for any Eagle tow tractor or part replaced or repaired under warranty.
• This warranty does not cover or provide credit for the following: tractor rental or other substitute equipment; lodging; loss of time, in-come, sales or profits; loss of the use of tractor; telephone calls or communication expense; lift truck; storage fees; injury or death to persons or damage or destruction of property; or consequential, incidental or punitive damages.
• Labor Allowance: A labor allowance may be issued upon request at Eagle’s discretion. Allowable labor hours and a per hour labor rate will be determined by Eagle according to reasonable automotive standards.
• Warranty Claim Procedure: When a warranty situation arises, it is essential that the customer contact Eagle’s Warranty Department at +1 734-442-1000. The customer will need to provide Eagle with the tow tractor serial number and engine hours. A customer service representative will analyze the problem and determine the next steps. In many cases Eagle’s technical support personnel will be able to analyze the problem and recommend adjustments that will solve the problem and reduce down time. If further service is required, an Eagle customer service representative will work with customer personnel to arrange a service provider and/or parts be sent to your facility for the repair as quickly as possible.

  EXCEPT AS SET FORTH ABOVE, ALL WARRANTIES, CONDITIONS, REPRESENTATIONS, INDEMNITIES AND GUARANTEES, EXPRESS OR IMPLIED, WHETHER ARISING BY STATUTE, CUSTOM OF TRADE OR UNDER ORAL OR WRITTEN STATEMENTS MADE BY OR ON BEHALF OF EAGLE NEGOTIATIONS WITH CUSTOMER, DISTRIBUTOR, DEALER OR ANY REPRE-SENTATIVE, ARE HEREBY OVERWRITTEN AND EXCLUDED, AND NO LIABILITY SHALL ATTACH TO EAGLE, EITHER IN CONTRACT OR IN TORT, OR STRICT LIABILITY IN TORT, FOR ANY DAMAGE TO PROPERTY, LOSS OF PROFITS, DAMAGES, COSTS, CHARGES, LIABILITY OR EXPENSES, WHETHER DIRECT OR INDIRECT, CONSEQUENTIAL OR OTHERWISE, WHICH ARISE OUT OF OR IN CONNECTION WITH THE SALE OR USE OF ANY EAGLE MACHINE OR THE SUPPLY OF SERVICES.

  SUBJECT TO CHANGE WITHOUT NOTICE

  Note: The Eagle Tugs 3-Year Warranty covers TT-series, eTT-series, XL-series, eXL-series and USATS tow tractors used in aviation applications. All MTT and RTT-series, and Transit Pro tow tractors, and all Eagle models which are used in industrial applications, are covered under the Eagle Standard Warranty of 1 Year or 2,000 hours. Eagle Bob Tails are covered under Ford Motor Company’s Standard Warranty for each respective Ford truck model.
