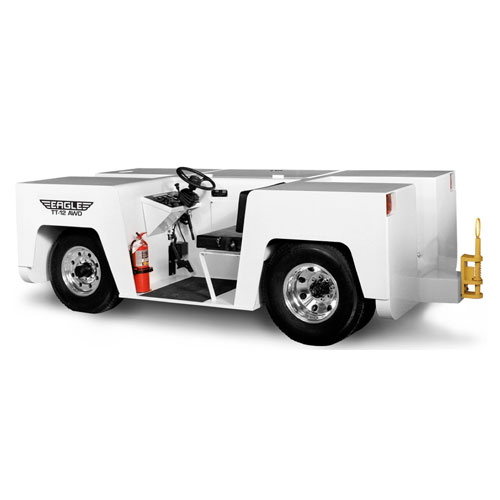

Eagle TT-12 AWD Tow Tractor

Product Description

The Eagle TT-12D aircraft tow tractor features an 84 HP (62 kW) diesel engine capable of towing an aircraft weighting up to 58,967 kg (130,000 lbs). With its all-wheel drive (AWD) system, this tug offers a safe and controlled traction while moving an aircraft.

Its engine is also equipped with a heavy-duty air cleaner, with a dry replacement element and suitable for severe environments. The four-cylinder engine has a fuel capacity of 68 litres (18 gallons).

This low-profile aircraft tug features an ergonomic operator compartments with front and rear hitch sight tunnels, offering a safe, comfortable and efficient work space for the operator to handle both the unit and the aircraft. In addition, it provides the operator with unobstructed front and rear hitch visibility. Its mid-operator design allows the operator to entry and exit the unit quickly and safely.

The Eagle TT-12D tow tractor is equipped with a hydraulic power-boosted mechanical, self-centring steering system and a hydraulic, self-adjusting, split type brakes with an accumulator for higher efficiency.

The Eagle’s aircraft tugs have the industry’s longest and strongest warranty, three years or 3,000 hours, with parts and technical support available globally. With over 45 years of experience, the Eagle tugs are reliable and efficient tow tractors.

This unit is ideal for business jets such as the G650 and Global Express and regional jets such as the CRJ-900 and ERJ-175 in all surface conditions.

For more information on the TT-12D or to request a demo unit, please contact Aviation Spares & Repairs Limited.

We are here to help with all of your GSE requirements.

Performance

• Two front and two rear drive wheels
• Drawbar pull of 53 kN (12,000 lbf)
• Towing capacity of 58,967 kg (130,000 lbs)
• Service weight: 6,350 kg (14,000 lbs)
• Optional cab weight: 318 kg (700 lbs)

Dimensions

• Length: 3,378 mm (134 inches)
• Width: 1,829 mm (72 inches)
• Height: 1,194 mm (47 inches)
• Height with optional cab: 1,880 mm (74 inches)
• Wheelbase of 2,210 mm (87 inches)
• Track: 1,295 mm (51 inches)
• Front and rear tyres: 241 x 419 mm (9.5 x 16.5 inches)
• Height of step: 254 mm (10 inches)
• Ground clearance: 228 mm (9 inches)

Chassis

• Frame and body made with 12.7 mm (.500 inches) thick A36 steel
• Front and rear bumper: 101.6 mm (4 inches) thick A36 steel

Travel

• Leaf spring suspension over both axles
• Three speeds forward and one speed reverse
• Maximum speed 20.9 kph (13 mph)
• Hydraulic power-boosted mechanical, self-centring steering system
• Hydraulic, self-adjusting, split type brakes with accumulator
• Front brakes disc: 330 mm (13 inches)
• Rear brakes drum: 305 x 76 mm (12 x 3 inches)
• Orscheln-type mechanical parking brakes to rear brake drums

Engine

• Yanmar 4TNV98T Diesel engine
• Rated output of 84 HP (62 kW) at 2800 rpm
• Torque of 317 Nm (234 ft lbs) at 2800 rpm
• Four-cylinder engine – 3.3 L
• Fuel tank capacity of 68 litres (18 gallons)

Electrical

• 12V electrical system
• Alternator rated at 55 amps
• Cold crank battery at 650 amps
• Ignition keyed with anti-restart switch
• 12V LED lights
• Dual-unit digital back-lit display, featuring engine diagnostics and full instrumentation

The Eagle Tugs (Eagle) 3-Year Warranty covers all TT-series, eTT-series, XL-series, eXL-series and USATS tow tractors, used in aviation applications. Eagle Tugs warrants that these tractors will be free from defects in material and workmanship for a period of 3 years or 3,000 operating hours, with the exception of the electrical system (see electrical component warranty below), from date of delivery to the first customer (or first use), whichever comes first. Written notice of any claimed defect must be given to Eagle within the warranty period and within thirty (30) days after such defect is discovered. Liability under this warranty is limited to either replacing or repairing, at Eagle’s election, any part or parts deemed defective after examination by Eagle or an Authorized Service Representative. Any Eagle tractor or any of its parts returned by the customer to Eagle or an Authorized Service Representative via prepaid transportation, and which is found to be defective, will be repaired or replaced and returned to the customer prepaid. On the other hand, should a part be found not defective, inspection and handling charges may be charged to the customer or Authorized Service Representative by Eagle.

• Electrical Component Warranty: Electrical components including but not limited to display, starters, alternators and electric fans shall be covered under the respective original manufacturers warranty for each individual component. Copies of the respective warranties are available upon request.

• This warranty does not extend to the tires, batteries, and battery chargers as these are warranted directly to the user by their respective manufacturer and not by Eagle or an Authorized Service Representative.

• This warranty does not apply to any Eagle tow tractor, or component part(s) that have been subjected to misuse, accident, vandalism, environmental conditions, improper handling or application, maintenance neglect, including lack of lubricants or fluids; nor does it extend to the Eagle tow tractor and/or parts which have been repaired or altered outside of Eagle’s plant or the facility of an Authorized Service Representative without the permission of Eagle.

• This warranty does not apply to routine maintenance or wearable parts of the Eagle tow tractor such as filters, seals, plugs, hoses, belts, brake pads or shoes, light bulbs, fuses or similar items. Moreover, this warranty does not extend beyond its original term for any Eagle tow tractor or part replaced or repaired under warranty.

• This warranty does not cover or provide credit for the following: tractor rental or other substitute equipment; lodging; loss of time, in-come, sales or profits; loss of the use of tractor; telephone calls or communication expense; lift truck; storage fees; injury or death to persons or damage or destruction of property; or consequential, incidental or punitive damages.

• Labor Allowance: A labor allowance may be issued upon request at Eagle’s discretion. Allowable labor hours and a per hour labor rate will be determined by Eagle according to reasonable automotive standards.

• Warranty Claim Procedure: When a warranty situation arises, it is essential that the customer contact Eagle’s Warranty Department at +1 734-442-1000. The customer will need to provide Eagle with the tow tractor serial number and engine hours. A customer service representative will analyze the problem and determine the next steps. In many cases Eagle’s technical support personnel will be able to analyze the problem and recommend adjustments that will solve the problem and reduce down time. If further service is required, an Eagle customer service representative will work with customer personnel to arrange a service provider and/or parts be sent to your facility for the repair as quickly as possible.

EXCEPT AS SET FORTH ABOVE, ALL WARRANTIES, CONDITIONS, REPRESENTATIONS, INDEMNITIES AND GUARANTEES, EXPRESS OR IMPLIED, WHETHER ARISING BY STATUTE, CUSTOM OF TRADE OR UNDER ORAL OR WRITTEN STATEMENTS MADE BY OR ON BEHALF OF EAGLE NEGOTIATIONS WITH CUSTOMER, DISTRIBUTOR, DEALER OR ANY REPRE-SENTATIVE, ARE HEREBY OVERWRITTEN AND EXCLUDED, AND NO LIABILITY SHALL ATTACH TO EAGLE, EITHER IN CONTRACT OR IN TORT, OR STRICT LIABILITY IN TORT, FOR ANY DAMAGE TO PROPERTY, LOSS OF PROFITS, DAMAGES, COSTS, CHARGES, LIABILITY OR EXPENSES, WHETHER DIRECT OR INDIRECT, CONSEQUENTIAL OR OTHERWISE, WHICH ARISE OUT OF OR IN CONNECTION WITH THE SALE OR USE OF ANY EAGLE MACHINE OR THE SUPPLY OF SERVICES.

SUBJECT TO CHANGE WITHOUT NOTICE

Note: The Eagle Tugs 3-Year Warranty covers TT-series, eTT-series, XL-series, eXL-series and USATS tow tractors used in aviation applications. All MTT and RTT-series, and Transit Pro tow tractors, and all Eagle models which are used in industrial applications, are covered under the Eagle Standard Warranty of 1 Year or 2,000 hours. Eagle Bob Tails are covered under Ford Motor Company’s Standard Warranty for each respective Ford truck model.
