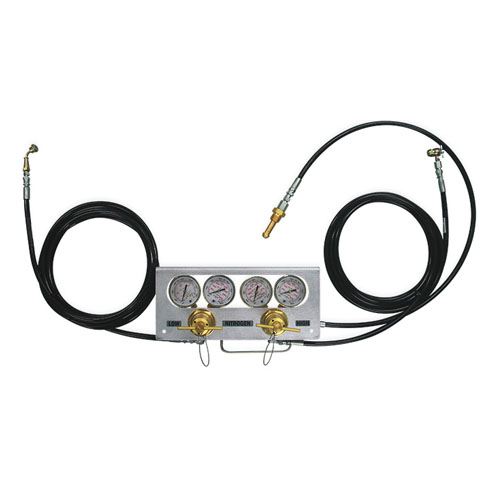

1 Bottle Nitrogen Low/High Pressure Regulator System

Product Description

Our low or high nitrogen regulator assemblies come in 1 bottle, 2 bottle, 3 bottle, and 4 bottle configurations.

For any aircraft, there are different systems requiring nitrogen at different PSI ranges. For this reason, it is important to have both a low and a high-pressure regulator. The purpose of having a low-pressure regulator is to service low pressure nitrogen systems for example, aircraft tires.

The purpose of having a high pressure regulator is to service high pressure nitrogen systems for example, aircraft struts and accumulators, which are used as a backup system for hydraulic failure. A low/high regulator system allows the operator to service low and high psi ranges without switching bottles or regulators. One service regulator system can then service all nitrogen requirements of an aircraft.

P/N: 001587

Please contact Aviation Spares & Repairs Limited for more information on the 1 bottle nitrogen low/high pressure regulator system. We are here to help with all your GSE requirements.

  • 1-bottle low and 1-bottle high nitrogen regulator with (2) 15′ (457.2 cm) delivery hoses
  • Includes inflating valve adapter on one delivery hose and 05-002 strut service valve adapter on the other delivery hose
  • Includes manual and calibration certificates
  • Includes inlet and outlet gauges
  • High regulator delivery range: 200-3,000 psi
  • Low regulator delivery range: 0-400 psi
  • Delivery range: 0-3000 psi
  • Max inlet: 3000 psi
  • This 1 bottle Low/High nitrogen regulator mounts to a panel and has one input hose with CGA580 connector

Please SPECIFY if hose to bottle fitting requirement (bottle connection point) is different than CGA580. This regulator will come configured with the standard U.S.A. CGA connection, unless notified of different bottle connection type.


  • Dimensions: L 24″ x W 18″ x H 12″ (61 cm x 46 cm x 30 cm)
  • Weight: 10 lbs (4.5 kg)
