Product Description

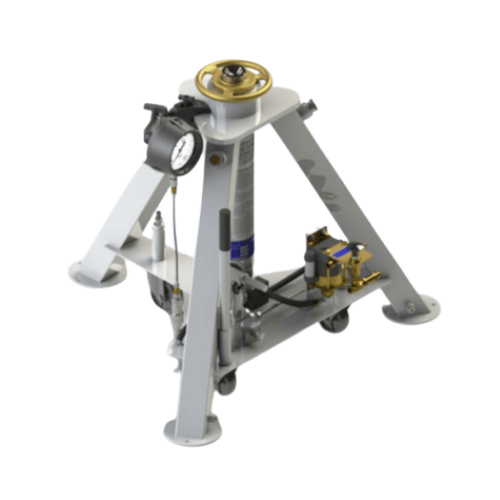

The Model 8955 Tripod Jack is a 10-ton capacity, single-stage hydraulic jack specifically designed for business jet maintenance. Featuring a rugged tubular steel frame, dual-leg reservoirs, and spring-loaded swivel casters, this jack ensures smooth maneuverability and stability during operations. The manual hand pump can be upgraded to an optional air-operated hydraulic pump with remote control capabilities via the Air Manifold Kit (p/n 712020-3). Built for durability, it includes Skydrol-resistant white paint, corrosion-resistant plating, and a three-year warranty. Ideal for Challenger series aircraft, this jack combines precision engineering with robust performance.
Specifications
| Feature | Details |
|---|---|
| Rated Capacity | 10 tons (9.1 metric tons) |
| Side Load Capacity | 15% of vertical load |
| Roll Under Height | 32.7 inches (832 mm) |
| Low Height | 32 inches (813 mm) |
| Hydraulic Lift | 24 inches (610 mm) |
| Extension Screw | 12 inches (305 mm) |
| Total Extended Height | 68 inches (1727 mm) |
| Oil Pressure (Rated Load) | 2079 psig (146 kg/cm²) |
| Safety Pop-off Valve | 11.0 tons (10.0 metric tons) |
| Proof Load | 15.0 tons (13.6 metric tons) |
| Reservoir Capacity | 1.5 gallons (5.7 liters) |
| Hydraulic Fluid | MIL-PRF-5606 or equivalent |
| Net Weight | 250 lbs (113 kg) |
Optional Features
-
Air Operated Hydraulic Pump – Enables effortless lifting with remote control via Air Manifold Kit (sold separately).
-
Portable Load Gauge Kit (LGK) – Provides real-time load measurement with included storage container.
-
Custom Paint Color – Available upon request (standard: white).
-
Export Crating – Secure packaging for international shipments.
Optional Equipment Codes
| Code | Description |
|---|---|
| AP | Air Operated Hydraulic Pump |
| LGK | Portable Load Gauge Kit with Storage Container |
| SPC | Special Paint Color |
| 8955PK | Repair Kit |
| EC | Export Crating |
Packaging & Shipping Data
| Packaging | Dimensions (inches/mm) | Weight (lbs/kg) |
|---|---|---|
| Domestic Skid | 40 x 36 x 36 (1016 x 914 x 914) | 300 (136) |
| Export Crating | 42 x 41 x 39 (1067 x 1041 x 991) | 340 (154) |
Accessory
-
Air Manifold Kit (p/n 712020-3) – Required to operate three jacks simultaneously from a single air source.
