Product Description

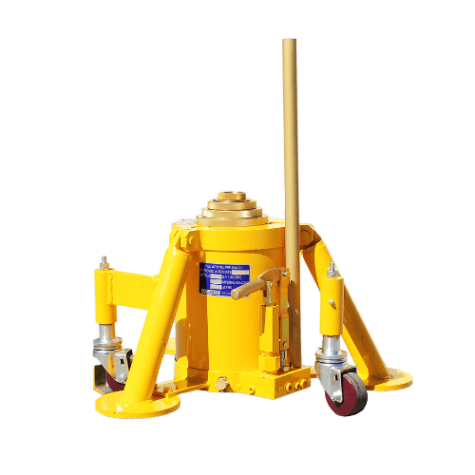

The Model 8923 Fixed Height Tripod Jack is a heavy-duty 12-ton capacity, two-stage hydraulic jack designed for commercial aircraft maintenance. Featuring adjustable swivel feet with level indicators, this jack provides exceptional stability on uneven surfaces for Airbus A320 family and Boeing 737 aircraft. The 70″ hydraulic lift and 12″ extension screw offer precise height adjustment, while the secondary cylinder seal enhances durability in harsh environments. With Skydrol-resistant yellow paint and three-year warranty, this jack delivers professional-grade performance.
Technical Specifications
Core Performance Data
| Parameter | Specification |
|---|---|
| Capacity | 12 tons (10.9 m.t) |
| Low Height | 60″ (1524 mm) |
| Extended Height | 142″ (3607 mm) |
| Hydraulic Lift | 70″ (1778 mm) |
| System Pressure | 914 psig (64.3 kg/cm²) |
| Safety Factor | 150% proof load (18 tons) |
| Base Radius | 46.5″ (1181 mm) |
Construction Details
-
Frame: Rugged tubular steel
-
Cylinder: Hard chrome-plated bore
-
Fluid Capacity: 6.8 gallons (25.7L)
-
Weight: 710 lbs (322 kg)
-
Paint: Skydrol-resistant (yellow standard)
Configuration Options
Standard Features
-
Three-position manual hand pump
-
Spring-loaded swivel casters with locks
-
Adjustable leveling feet with indicators
-
Integrated rain protection
-
Secondary cylinder seal
Optional Upgrades
| Code | Option | Key Benefit |
|---|---|---|
| AP | Air-operated pump | Reduced operator effort |
| GA | Load gauge | Real-time weight monitoring |
| LA | Ladder/platform | Maintenance access |
| AM | Air manifold | Remote operation |
| SPC | Custom colors | Facility requirements |
Aircraft Compatibility
Primary Applications
-
Airbus: A318/A319/A320/A321
-
Boeing: 737 series
-
Embraer: E1/E2 series
Packaging & Shipping
Domestic Options
| Configuration | Dimensions | Weight |
|---|---|---|
| Set-Up | 83×89×67″ | 900 lbs |
| Knocked Down | 72×40×28″ | 900 lbs |
International Options
| Configuration | Dimensions | Weight | Surcharge |
|---|---|---|---|
| EC Set-Up | 85×94×70″ | 1100 lbs | +22% |
| ECLKD | 74×45×57″ | 1220 lbs | +35% |
