Product Description

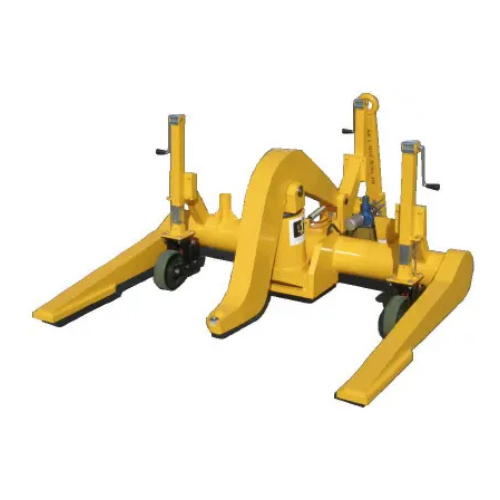

This Rhino Jack is designed for use with multiple flat tires where minimum clearance is available. With excellent mobility characteristics it is easily positioned under the aircraft. Mechanical safety lock nuts permit two or more wheels to be removed simultaneously. It is available with optional sling and crane assembly to remove wheels and brakes from axle.
Specifications
- Vertical Capacity: (tons / m tonnes) 50.0 / 45.4
- Minimum Height: (inches / mm) 4.0 / 102
- Hydraulic Lift: (inches / mm) 20.5 / 521
- Maximum Extended Height: (inches / mm) 24.5 / 622
- Net Weight: (lbs / kg) 3,875 / 1,796
Standard Features
- 50-Ton Capacity
- Dual Manual Hand Pump
- Air-Powered Pumping Unit
- Mechanical Lock Nut
- Single External Relief Valve
- Towbar Assembly – Maximum Towing Speed: 5 mph
- 8″ Diameter Casters with Poly Tread
- Skydrol-Resistant Yellow Paint
Documentation
- Operation and Maintenance Manual
- Certificate of Conformance
- Load Test Report
- Factory New – 12-Month Written Warranty
Available Optional Equipment
- 1038-4000 Wheel/Brake Crane and Sling Assembly
Jacking Applications
Nose Landing Gear
- A300B, A300-600, A310 (KC310), A318, A319, A320, A321, B707 (E6 & KC135), B717, B727, B737 Classic, B737 NG, B757-200 / -300 (C-32), DC9 All Series, MD80 & MD90 All Series
Main Landing Gear
- A300B, A300-600, A310 (KC310), A318, A319, A320, A321, B707 (E6 & KC135), B717, B727, B737 Classic, B737 NG, B757-200 / -300 (C-32), DC9 All Series, MD80 & MD90 All Series
